Delta Series Doors

Delta Series doors are designed and constructed with the highest quality features and offer the most complete package of standard options available in the industry. All standard Delta Series doors from  Daybar Xpress are manufactured in the U.S.A. to meet or exceed SDI and HMMA/NAAMM specifications.


Construction features:


  • 1 3/4" standard thickness
  • 18, 16, and 14 gauge door skins
  • A60 galvannealed steel standard; G90 galvanized optional
  • Rust-inhibitive primer
  • Inverted end caps standard; top and bottom caps available
  • Beveled edge construction standard; square edge optional
  • Fire-rated up to 3-hours


Standard hardware reinforcing:


  • Mortised hinges: 7 gauge hinge
  • 161/86/panic reinforcing: 14 gauge
  • Closer reinforcement: 14 gauge


Click below for additional information:


    Core options


    Edge Seam options


    Integral lite & cutout options


    Standard hardware locations


    Cut-sheets:


         HONEYCOMB


         POLYSTYRENE


         POLYURETHANE


         STEEL-STIFFENED


         TEMPERATURE-RISE


Core Options

Honeycomb

Polyurethane

Polystyrene

3/4"  honeycomb core suitable for for interior and exterior use  where high thermal insulation is not required

R-Value: 2.5

U-Value: .40

STC (est): 32

Polystyrene

Polyurethane

Polystyrene

Standard insulated core recommended for exterior use and applications that require insulation.

R-Value: 6.6

U-Value: .15

STC (est): 34


Polyurethane

Polyurethane

Steel-Stiffened

Insulated core suitable for applications that require insulated doors with higher-performance R-Value and U-Value ratings.

R-Value: 11.1

U-Value: .09

STC (est): 34

Steel-Stiffened

Temperature-Rise

Steel-Stiffened

Vertical steel ribs for applications that require added strength and security.

R-Value: 1.2

U-Value: .85

STC (est): 24

Temperature-Rise

Temperature-Rise

Temperature-Rise

Specialty core provides resistance against heat transfer  from one side of the door to the other during a fire.

R-Value: 3.25

U-Value: .3

STC (est): 34

Edge Seam Options

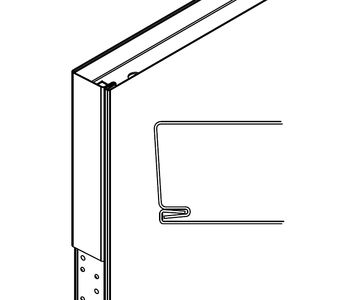

Visible Seam (Std.)

Visible Seam (Std.)

Visible Seam (Std.)

Fully visable edge seam construction.

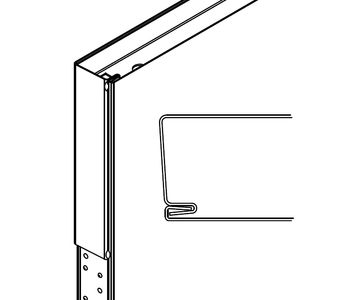

Tack-Welded Seam

Visible Seam (Std.)

Visible Seam (Std.)

Edge seam is tack-welded at top and bottom of door and above/below all mortised hardware preps.  Balance of the edge seam is visible.

Tack-Welded & Filled Seamless

Tack-Welded & Filled Seamless

Tack-Welded & Filled Seamless

Edge seam is tack-welded at top and bottom of door and  above/ below all mortised hardware preps.  Balance of the edge seam is then filled and dressed smooth.

Fully-Welded Seamless

Tack-Welded & Filled Seamless

Tack-Welded & Filled Seamless

Edge seam is fully-welded, ground and dressed smooth.  Door size and cut-out limitations apply.

Integral Lites & Cut-out Options

Download PDF

Standard Hardware Locations

Download PDF

HONEYCOMB Cut-Sheet

Download Cut-Sheet

POLYSTYRENE Cut-Sheet

Download Cut-Sheet

POLYURETHANE Cut-Sheet

Download Cut-Sheet

STEEL-STIFFENED Cut-Sheet

Download Cut-Sheet

TEMPERATURE-RISE Cut-Sheet

Download Cut-Sheet
